Application:

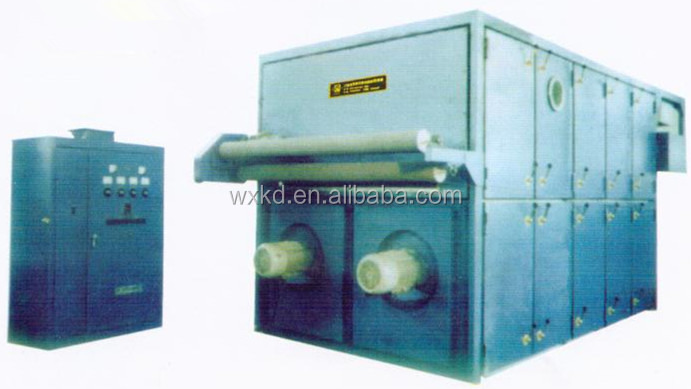

This machine is applicable to all types of woven and knitted fabrics of continuous drying process. Especially suitable for long-haired terry fabric,spiral,plush,velour,velvet,corduroy,towel,bath towel,floor towel and other heavy fabric.After tensionless drying,the fabric softness and fluffy increased obviously.It’s the best equipment for enhancing the grade of the product and increasing economic profit of makers.
Because of the unique design and reasonable construction,fabric completely driven by air flow and spreaded in the machine.One or more fabric can drying at the same time in the machine.Truly achieved no tension and no contact.Constant temperature control system and speed control system make the operation very convenient,reliable and stable performance.
Main Specifications:
1.Working range:1800mm/2400mm/3200mm
2.Power: Type:180 240 320
Power(KW): 34 44 52
3.Steam pressure:0.6MPa
4.Evaporation capacity:380Kg/h
5.Max temperature:140℃
6.Machine speed:2-20m/min(depend on moisture content and fabric thickness)
7.Fabric content in the dryer:30m
8.Cloth folding width:0.5-1m
